FNIRSI® 2D15P 3-in-1 Benchtop 2CH 100MHz Phosphor Oscilloscope Multimeter

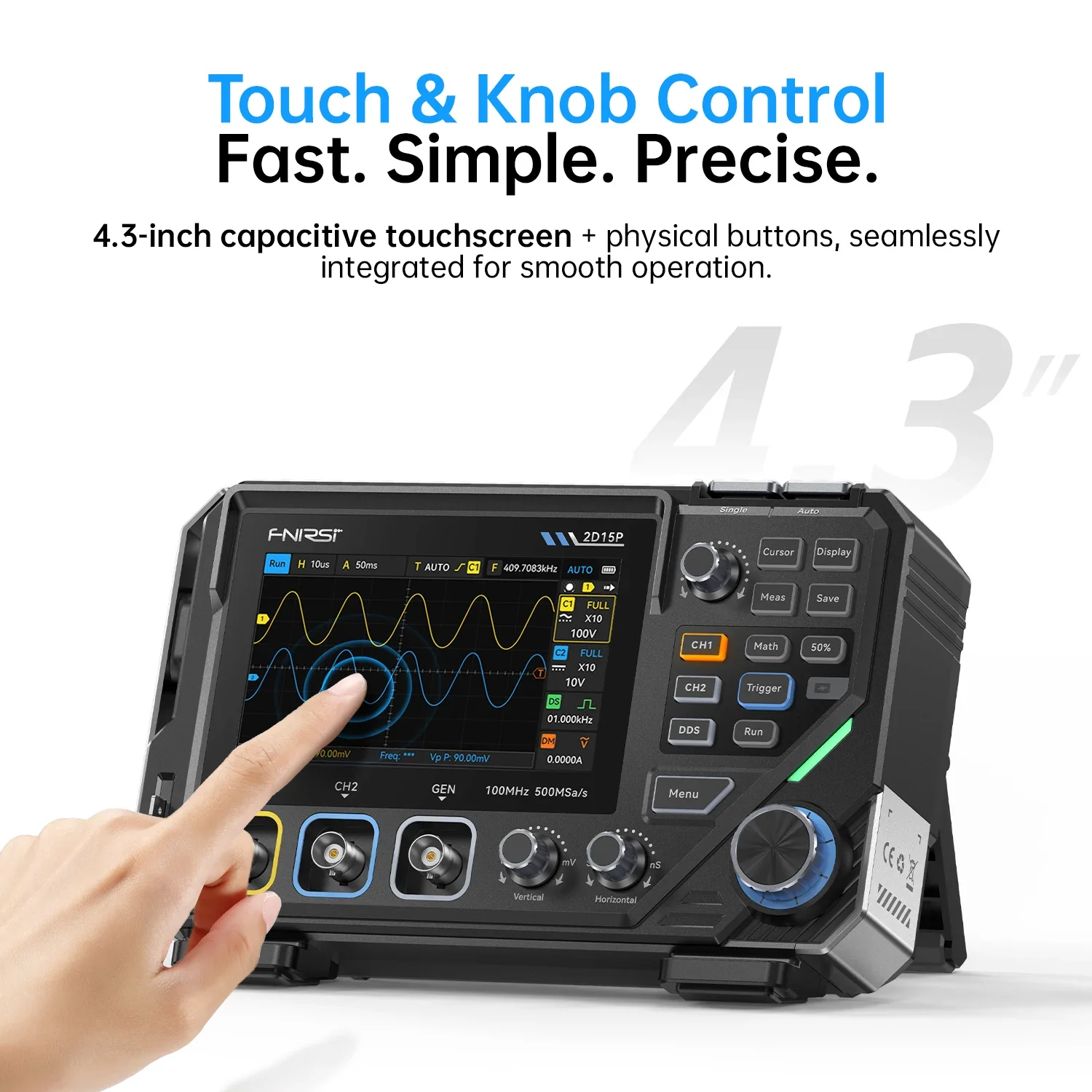

The FNIRSI 2D15P combines physical buttons with a 4.3" capacitive touchscreen. It offers 500 MSa/s sampling, 100 MHz single-channel bandwidth (50 MHz dual-channel), and 10K–1M memory depth. Features include 128-level grayscale display, 1200 fps waveform capture, math functions, 18 automatic measurements, a 10 MHz waveform generator, and a 19999 Counts True RMS multimeter supporting voltage, current, resistance, capacitance, diode, and continuity tests.
Key Features
- Dual-Channel Input — 100 MHz single-channel / 50 MHz dual-channel operation.
- Selectable Memory Depths — 10 K / 100 K / 1 M for flexible data capture.

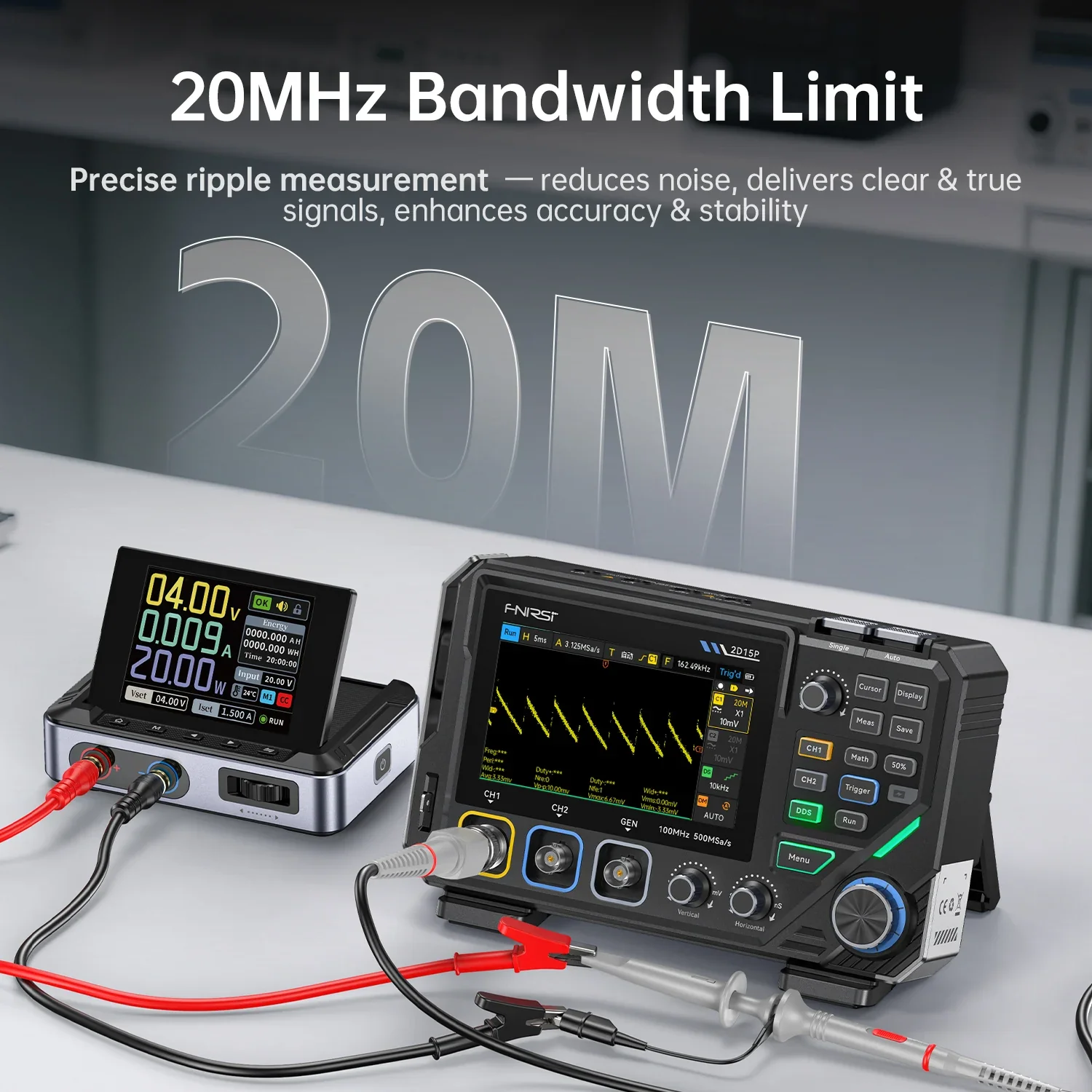

- 20 MHz Bandwidth Limit — Reduces noise for accurate ripple and precision testing.

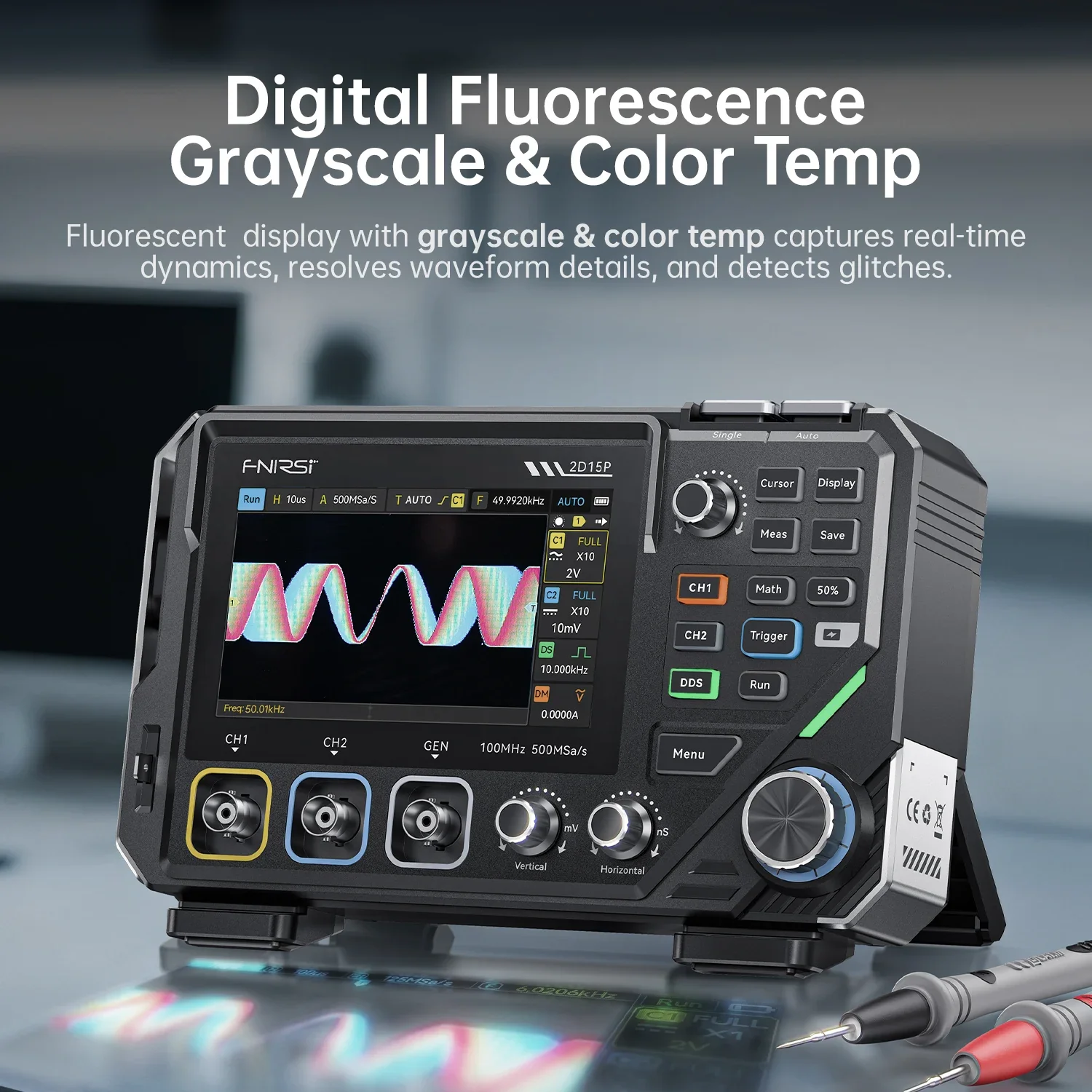

- Grayscale & Color Temperature Visualization — Reveal waveform persistence and signal dynamics.
- Math Operations (Add, Subtract, Multiply, Divide, etc.) — Real-time signal computation.
- XY Mode & Infinite Persistence — Visualize phase relationships and waveform overlap.

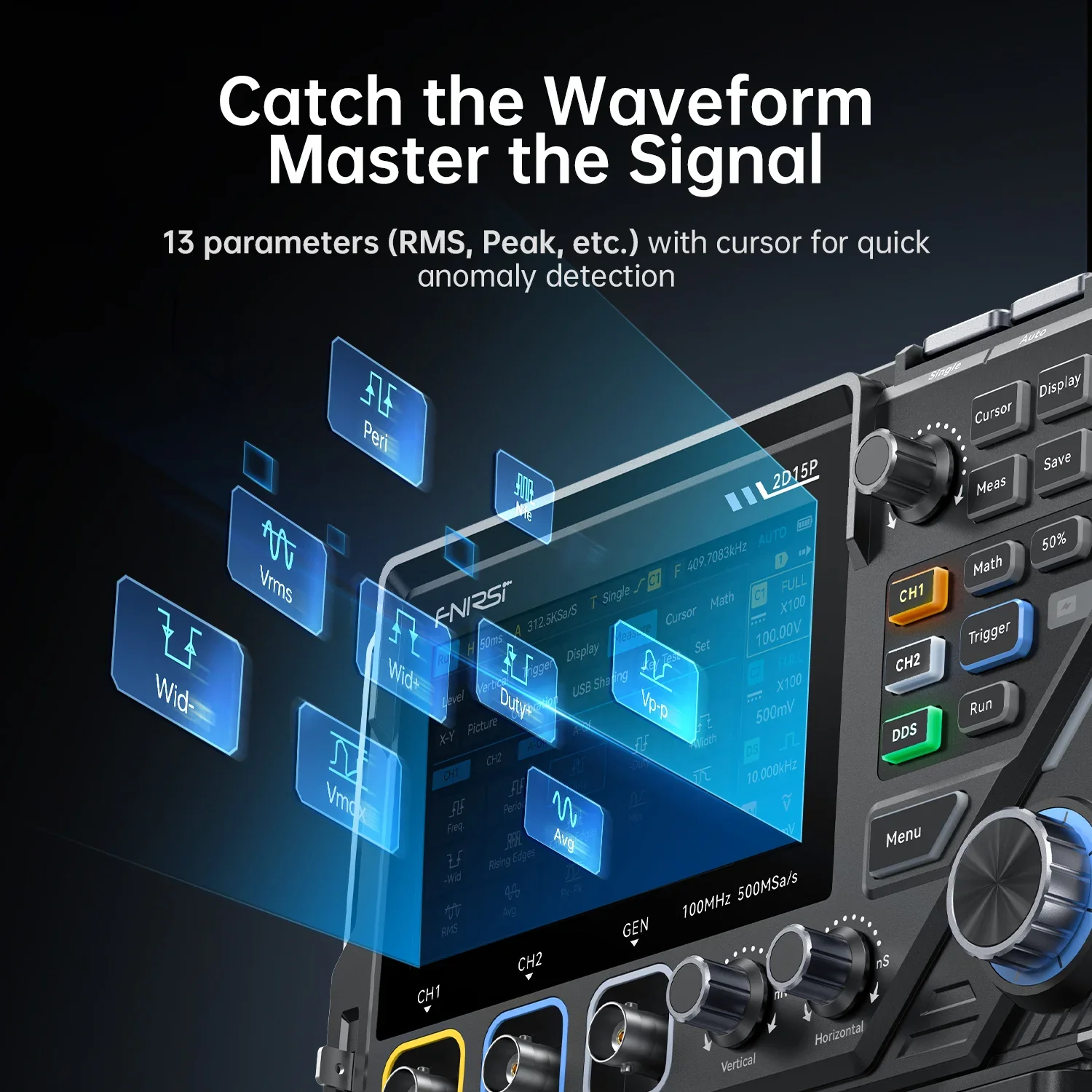

- Cursor Function & 13 Auto Measurements — Quick and clear parameter analysis.
- Auto / Normal / Single Trigger Modes — Flexible signal capture for every testing need.
- 10 MHz DDS Signal Generator — Output up to 11 common waveforms with adjustable amplitude and duty cycle.

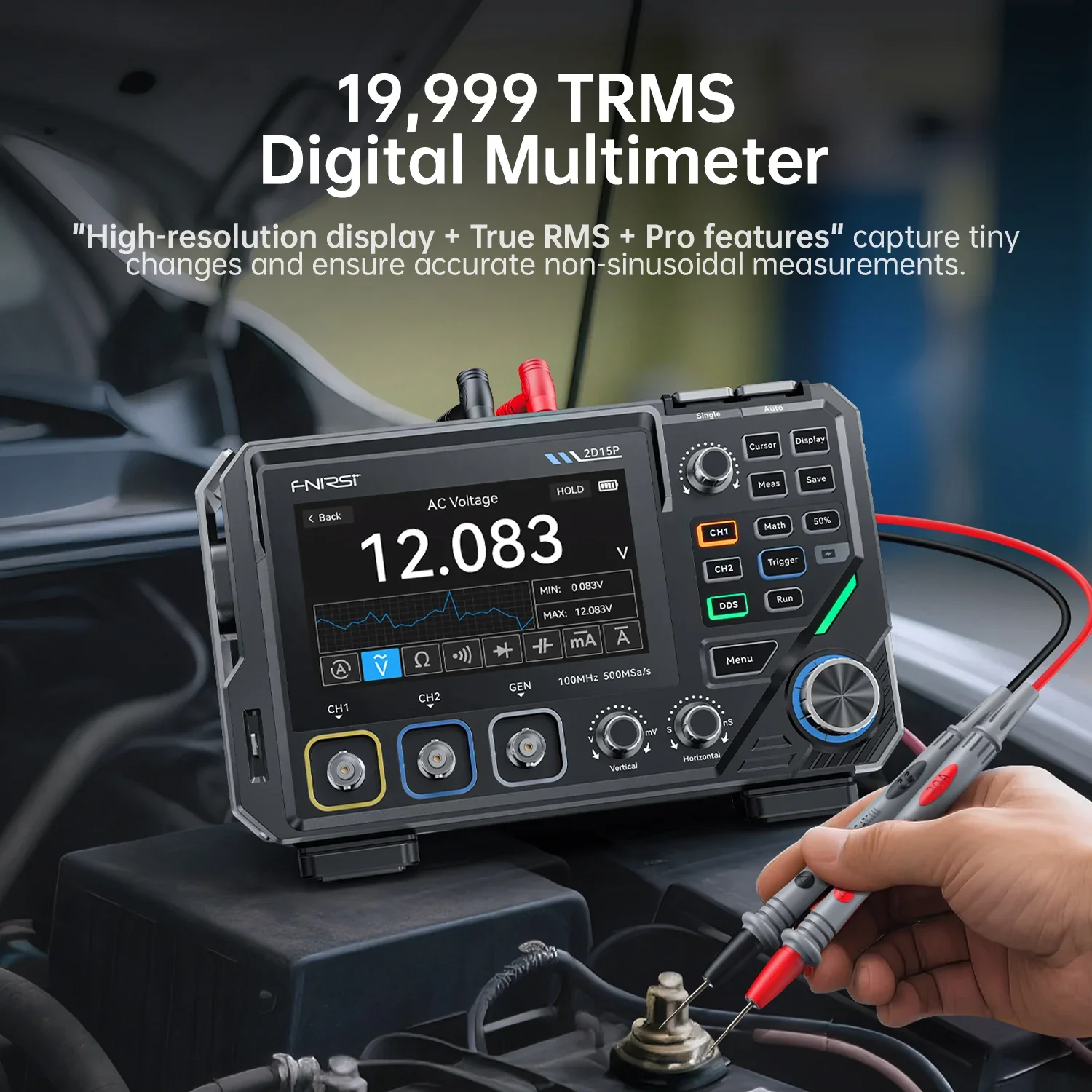

- True RMS Multimeter (19,999 Counts) — Supports V/A (AC/DC), Ω, capacitance, diode, and continuity tests.

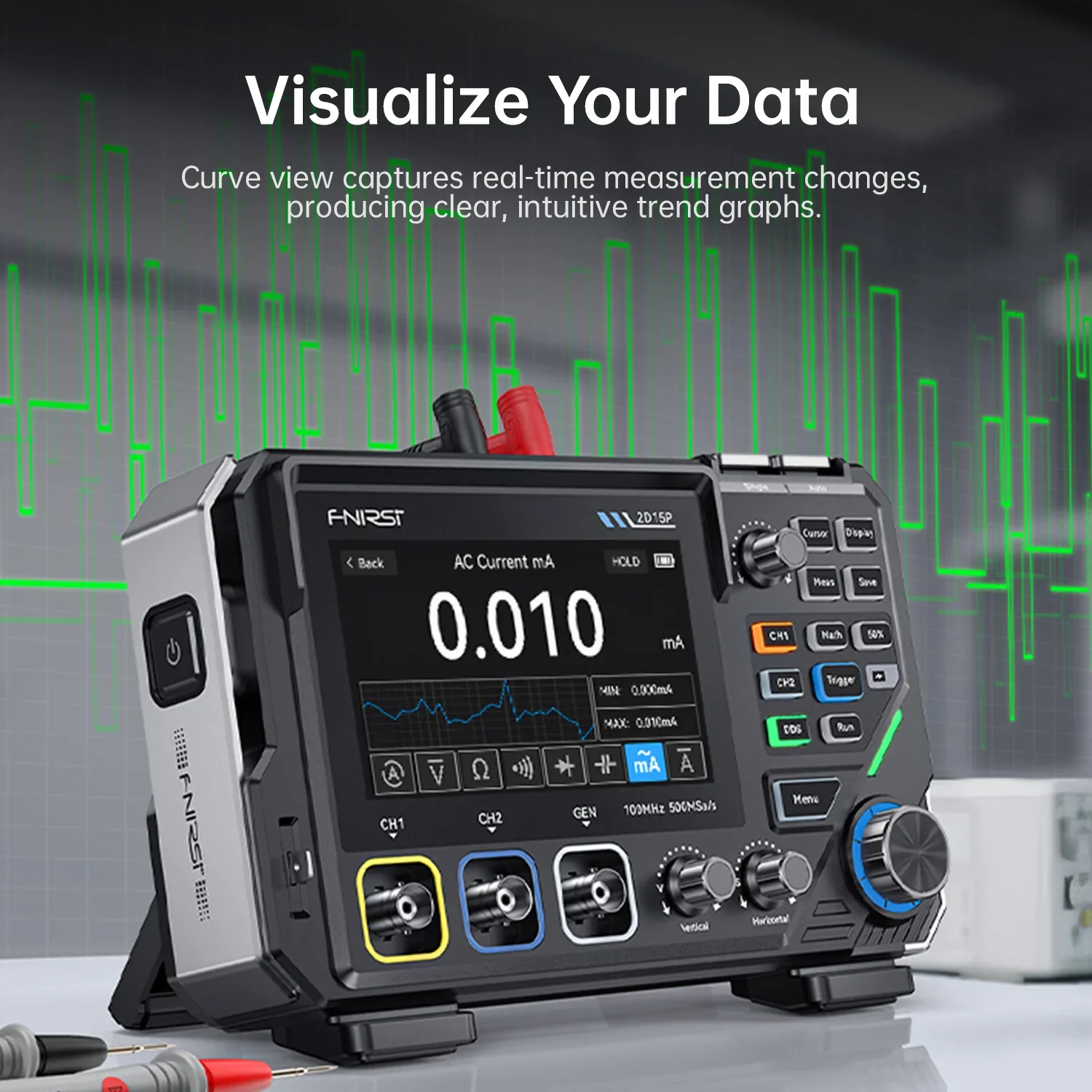

- Curve View Function — Displays real-time trend graphs for visual signal tracking.
- FPGA + MCU + ADC Architecture — Ensures high-speed signal processing and stable performance.

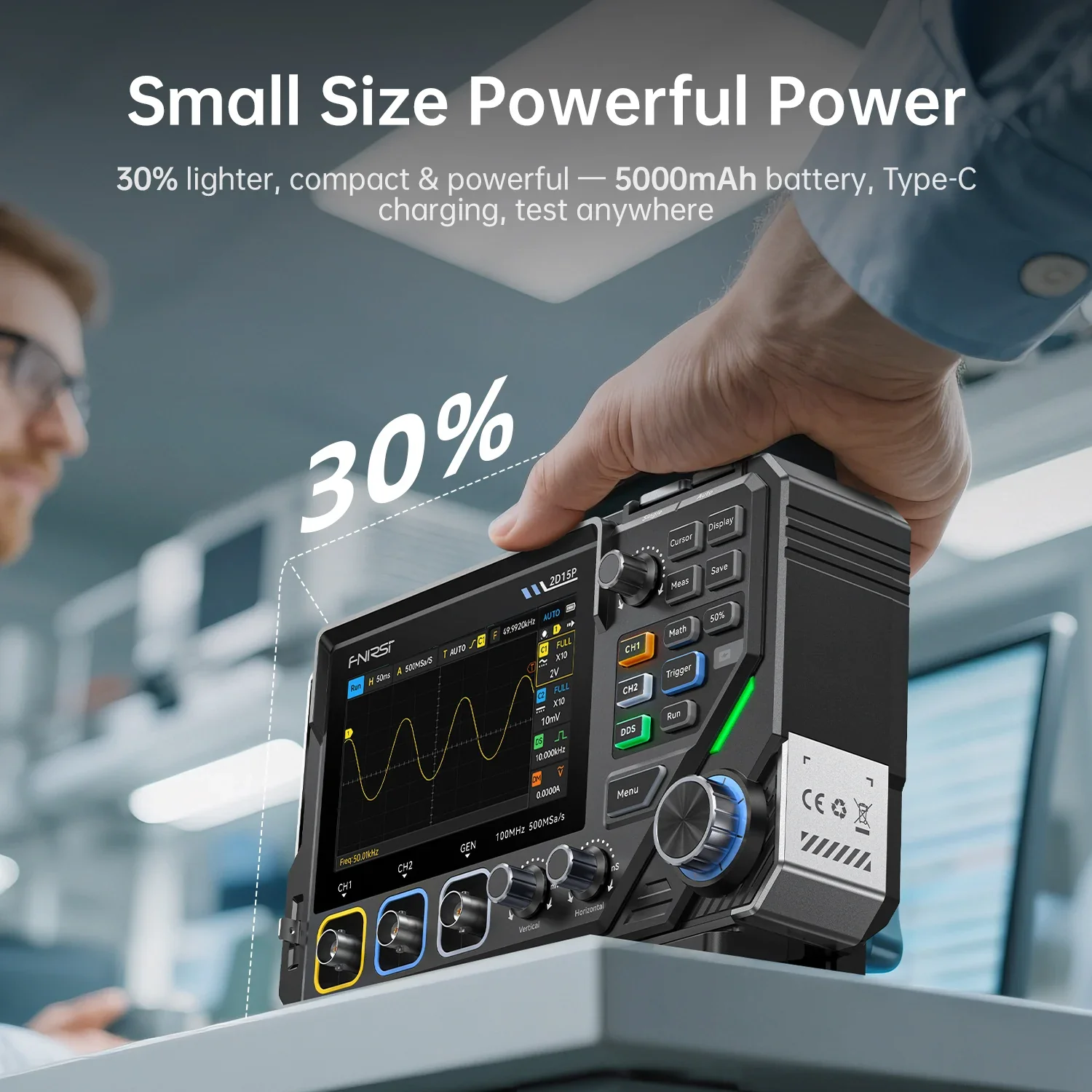

- Compact & Lightweight Design — 30 % lighter body with a powerful 5000 mAh battery.
- Wave Save & Export Function — Store and transfer waveform data for post-analysis.
- Type-C Charging Interface — Convenient, fast, and universal power connection.
Product Parameters
Oscilloscope Specifications:
Channel
Dual Channel
Sample Rate
500MSa/s
Analog Bandwidth
100MHz
Memory Depth
10K, 100K, 1M
Input Impedance
1MΩ
Timebase Range
5ns - 50s
Vertical Sensitivity
10mV - 10V/div
Max Input Voltage
800V (x10 Probe)
Trigger Mode
Auto, Normal, Single
Trigger Type
Rising, Falling, Both Edges
Display Mode
Dot, Vector, Color Temp
Coupling
AC/DC
Persistence
min / 2s / 5s / 10s / 20s / 50s / ∞
Math Operations
✔
Waveform Capture
✔
Waveform Export
✔
Cursor Measurement
✔
Multimeter Specifications:
DC Voltage
1.9999V / 19.999V / 199.99V / 1000V
AC Voltage
1.9999V / 19.999V / 199.99V / 750.0V
DC Current
19.999mA / 199.99mA / 1.9999A / 9.999A
AC Current
19.999mA / 199.99mA / 1.9999A / 9.999A
Resistance
19.999MΩ / 1.9999MΩ / 199.99KΩ / 19.999KΩ / 1.9999KΩ / 199.99Ω
Capacitance
999.9uF / 99.99uF / 9.999uF / 999.9nF / 99.99nF / 9.999nF / 9.999mF / 99.99mF
Diode
✔
Continuity
✔
Signal Generator Specifications:
Channel
1CH
Frequency
0 - 10 MHz
Amplitude
0.1 - 3.0 Vpp
Duty Cycle
0 - 100%
Package List:
◉ 2D15P Scope DMM *1
◉ P6100 Probe *2
◉ Multimeter Probe *1
◉ Alligator Clip Probe *1
◉ USB Data Cable *1
◉ User Guide *1
◉ P6100 Probe *2
◉ Multimeter Probe *1
◉ Alligator Clip Probe *1
◉ USB Data Cable *1
◉ User Guide *1
